128×64 Monochrome COG LCD Module

The 240×128 Monochrome COG Graphic LCD Module is a 128×64 yellow-green backlight LCD and it can provided with a PCB or Green Backlight. This LCD module currently has 7 different variations. Different customers have different needs, this 128×64 Monochrome COG LCD Module has different attributes:

  • Driver IC: ST7567 / IST3040 / …;
  • View Area: 53.8×28.6mm / 73×39mm / …;
  • Outline Dimension: 26.7×19.26×2mm / 65×38.6×4.9mm / …;
  • Pin Number: 8 Pins / 9 Pins / …;
  • Optional: PCB / FPC.

Welcome to custom more others 128×64 Monochrome COG LCD Module!

Overview

Model number Dot matrix Outline dimension(mm) View area(mm) IC Pin number Remark
HSG12864-34 128×64 65×38.6×4.9mm 53.8×28.6mm ST7567 10 With green BL
HSG12864-35 128×64 77×48×2.8mm 73×39mm IST3040 30 No BL
HSG12864-58 128×64 106.2×52.1×10.5mm 65.4×38mm ST7565R 16 With green BL
HSG12864-73 128×64 36.8×38.8×4.1mm 32×29mm ST7567 22 With green BL
HSG12864-101 128×64 77.4×52.4×6.5mm 70×40mm ST7565R-G 30 With white BL
HSG12864-128 128×64 79.05×39.5×8.04mm 53.6×28.6mm ST7567 10 With green BL
HFG12864-133 128×64 28.58×19.5×1.7mm 26.58×14.86mm ST7567S 12 No BL
HFG12864-134 128×64 47.6×37×2mm 44×29mm IST3004 30 No BL
HSG12864-135 128×64 78×37.4×5.2mm 53.4×25.2mm ST7567 20 With green BL
HFG12864-142 128×64 31×22.5×1.7mm 29×16.35mm ST7567 12 No BL
HSG12864-148 128×64 101×59×10.5mm 65.4×38mm ST7565R 9 With PCB board
HSG12864-159 128×64 41×33.1×3mm 36.2×22.5mm UC1701 12 With white BL
HFG12864-204 128×64 42×31.6×3mm 38×24.3mm ST7567 20 With white BL
HFG12864-211 128×64 26.7×19.26×1.8mm 22.94×11.46mm ST7567S 30 With white BL
HFG12864-268 128×64 71×48×5mm 66×38mm ST7565R 20 With white BL
HSG12864-303 128×64 65.3×40.7×5.85mm 53.8×28.8mm UC1701X 14 With white BL
HFG12864-338 128×64 77.4×52.4×6.5mm 70×40mm ST7565R 28 With white BL
HFG12864-415 128×64 43.1×27.46×1.7mm 39.5×20.24mm UC1701C 12 No BL
HFG12864-469 128×64 56.6×38.6×5.1mm 53.6×28.6mm ST7567 10 With white BL
HSG12864-510 128×64 77.4×52.4×6.5mm 66.54×33.26mm ST7565R 28 With white BL
HSG12864-580 128×64 79.05×39.5×8.04mm 53.6×28.6mm ST7567A 11 With green BL
HFG12864-632 128×64 28.58×19.5×1.7mm 25.58×14.06mm ST7567S 8 No BL
HFG12864-651 128×64 44.5×28.86×4.3mm 39.5×20.24mm ST7567A 15 With white BL
HFG12864-653 128×64 50.2×39.2×6mm 44×29mm ST7567A 30 With white BL
HFG12864-660 128×64 71.3×48.2×5.3mm 66.5×38.4mm ST7567 20 With white BL
HFG12864-705 128×64 80×54×9.7mm 70.7×38.8mm ST7567 20 With white BL
HFG12864-724 128×64 67×43.45×5.15mm 61×31.5mm ST7567 20 With white BL
HFG12864-738 128×64 63.2×41.7×5.1mm 50×25mm ST7567S 20 With white BL
HFG12864-742 128×64 8×30×6.25mm 32×19.5mm ST7565R 30 With white BL
HFG12864-746 128×64 45.9×28.9×2.7mm 43.9×22.9mm ST7567 12 With white BL
HFG12864-758 128×64 31×22.5×2.7mm 29×16.35mm ST7567 12 With white BL
HFG12864-854 128×64 74.0×41.7×6.1mm 50×25mm ST7567S 18 With white BL
HFG12864-952 128×64 58.6×40..6×5mm 53.6×28.6mm ST7567 10 With green BL
HFG12864-1008 128×64 77.4×52.4×6.5mm 70×40mm ST7565R 28 With white BL
HFG12864-1219 128×64 62.4×45.9×6.3mm 53.5×35mm ST7567-G4 18 With white BL
HFG12864-1270 128×64 30.18×21.4×2.9mm 26.58×14.86mm ST7567S 14 With white BL
HFG12864-1292 128×64 35.75×31.65×2.6mm 30.35×22.75mm ST7567S 20 With white BL
HFG12864-1737 128×64 26.7×19.26×1.8mm 22.94×12.06mm ST7567S 12 With white BL
HFG12864-1870 128×64 26.7×19.26×2mm 22.344×11.464mm AIP31567A 12 With white BL
HSG12864-1939 128×64 65×38.6×4.9mm 53..6×28.6mm ST7567A 11 With green BL
HFG12864-1946 128×64 26.7×19.26×2mm 22.344×11.464mm AIP31567A 12 With white BL

Application Cases

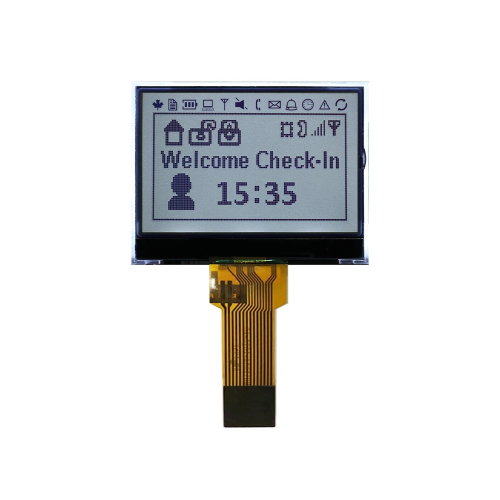

COG-Graphic-LCD
128x32 COG LCD Module

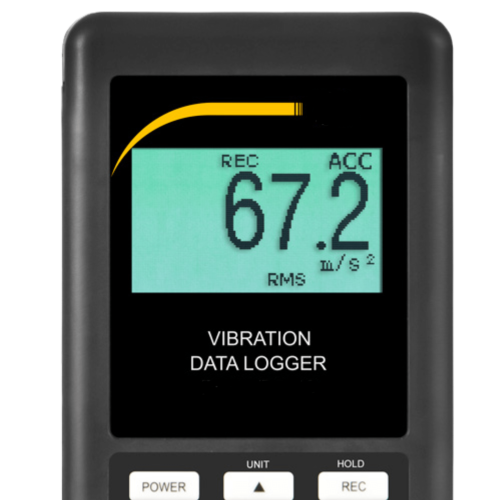

Application On Accelerometer

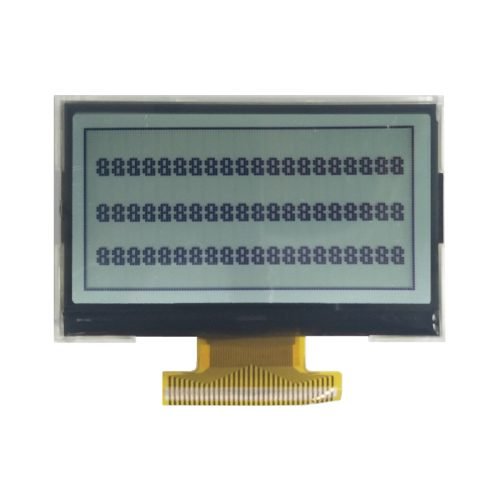

TFU12864-272
128x64 COG LCD Module

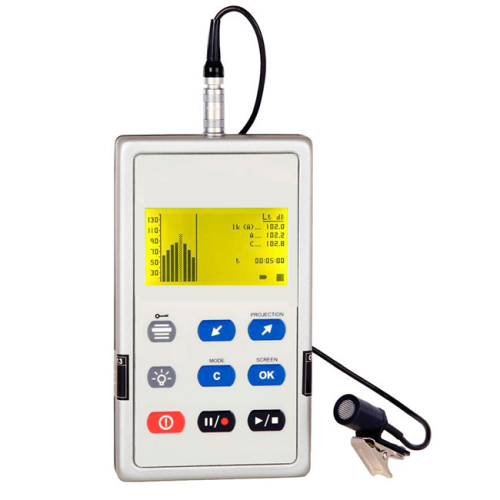

Dosimeter analyser in octave bands
Dosimeter analyser in octave bands

Our Services

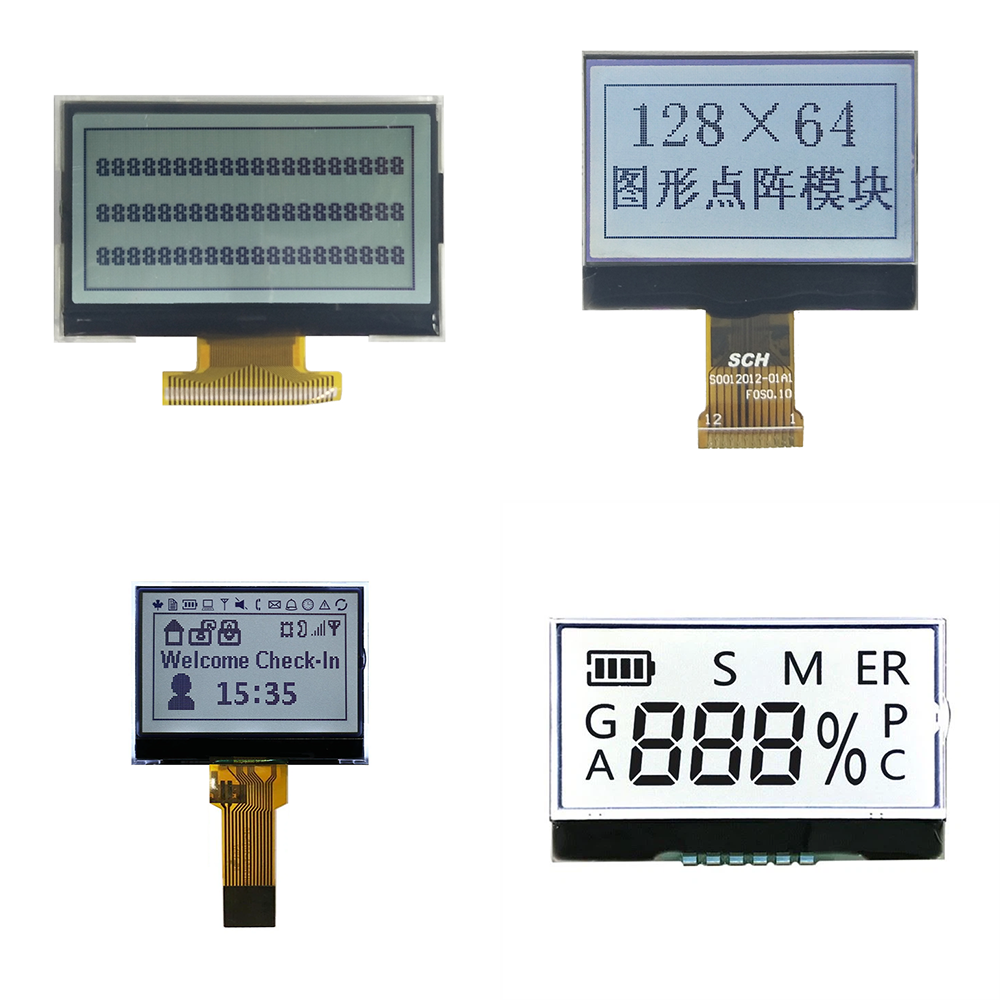

COG LCD Module Collections

Our Customization Services

Accelerate Your Development

  • Ready-to-Use Sample Code: Each COG LCD module comes with example code to help you integrate and test quickly.

  • Pre-Adapted Graphics Libraries: Access optimized libraries for your platform, reducing development time and effort.

  • Custom Pin Mapping: Tailor pin functions to seamlessly fit your existing development boards and systems.

Extensive Product Range

  • Full Sizes and Resolutions: From compact 16×2 character modules to high-resolution 320×240 graphic displays, we have the perfect solution for your application.

  • Comprehensive Datasheets: Every module is accompanied by a detailed datasheet, making it easy to understand specifications and capabilities.

  • Customizable Modules: Choose your preferred resolution, backlight color, IC, or display type to meet your exact requirements.

Technical Support and Services

Legacy & Replacement Solutions

  • Discontinued Product Support: We design and produce replacements for older, out-of-production LCD modules, helping you maintain continuity in long-running projects.

  • High MOQ Options: Even for specialized legacy modules, we can accommodate production requirements to keep your supply chain stable.

Reliability & Warranty

  • One-Year Warranty: All modules are backed by a full year of warranty coverage. Any quality issues are handled with free replacements.

  • Expert Technical Support: Our engineers, with over a decade of LCD development experience, provide personalized guidance and troubleshooting assistance.

  • Long-Term Supply: We support long-term partnerships, ensuring your products remain available and up-to-date.

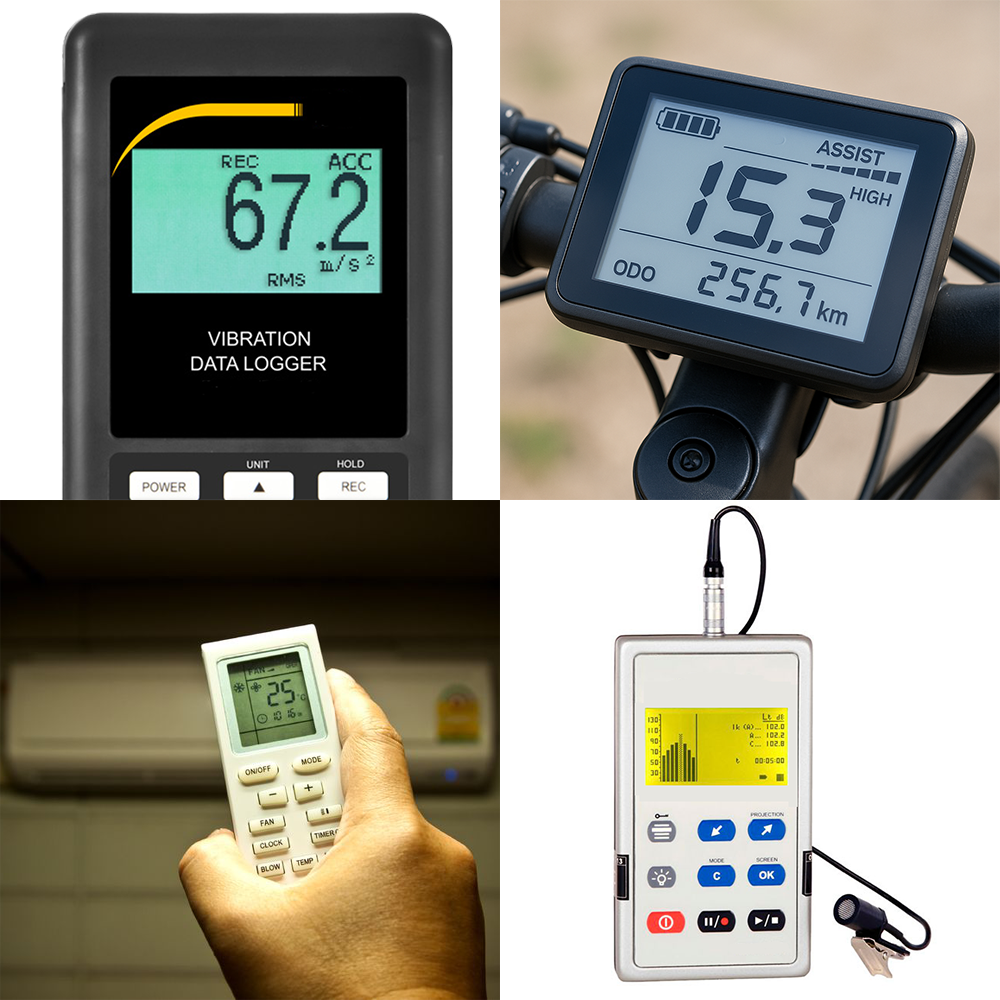

COG LCD Module Applications
