Modern LCD systems use smart correction and automatic gamma adjustment to change how gamma correction works for each image and scene. These methods help keep the gamma curve and display gamma steady for HDR LCDs, Mini-LED, and other new screens.
Engineers now use monitor gamma calibration, firmware updates, and factory LUT refresh to match the color gamma correction to standards like sRGB and BT.1886. These steps stop color and brightness shifts that can happen as LCD panels age or as new content types appear.
Real-time algorithms check each frame and change the gamma adjustment based on scene brightness and content details. Embedded LCD and small LCD systems also start to use simple smart correction routines to improve color gamma with fewer manual tweaks.
Modern display gamma control uses both hardware and software to keep images smooth, reduce banding, and protect shadow and highlight detail. This helps all LCD system types show clear and accurate images, even as display technology keeps changing.
What Is Gamma Correction and How Does It Work?
Gamma correction adjusts image brightness and contrast by applying a non-linear transformation to pixel values. It uses a gamma curve, a power-law function, to map input pixel values to output luminance, ensuring images look right on displays.
This technique comes from the need to fix how displays show brightness. The gamma curve, defined by the equation V_out = V_in^(1/γ), changes shape based on the γ value, affecting how bright or dark an image appears. For example, a γ of 2.2 is standard for many screens, while 2.4 is used in TV broadcasting. These values help match what the human eye sees with what the display shows, avoiding images that look too flat or too harsh.
Technical Details of the Gamma Curve
The gamma curve follows this formula:
V_out = V_in^(1/γ)
- V_in is the input pixel value (from 0 to 1).
- V_out is the output luminance.
- γ controls the curve’s shape.
Here’s how γ values change the image:
A γ of 0.45 compresses the image data for storage, while a γ of 2.2 expands it for display. This process keeps details clear in both shadows and highlights.
How Did Gamma Correction Start?

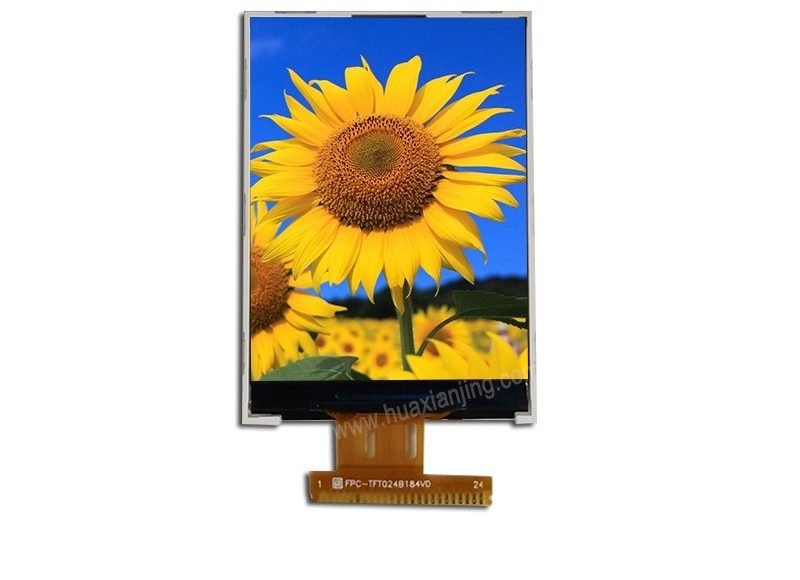

Gamma correction began with CRT monitors to fix their non-linear brightness response. It now helps modern displays like LCD and LED show images consistently.
Back in the CRT days, the screen’s brightness didn’t match the input signal directly—it followed a curve with an exponent around 2.5. Gamma correction applied an opposite curve to balance this, making images look natural. Today, even though LCD and LED screens work differently, gamma correction still ensures image gamma correction matches across devices and keeps visuals appealing.
Details of Gamma Correction’s Origins
- CRT influence: CRTs had a natural gamma of about 2.5, so correction used γ values like 0.4 to adjust.
- Modern use: Gamma on LCD screens uses values like 2.2 to align with standards like sRGB, keeping color gamma accurate.
Why Do LCDs Need Gamma Correction?
LCDs need gamma correction because the way they display brightness doesn’t naturally match how our eyes perceive it. Gamma correction adjusts the image to align with our vision, preventing problems like crushed blacks (where dark areas lose detail) and blown highlights (where bright areas lose detail).
Our eyes see brightness in a non-linear way—small changes in dark tones are more noticeable than in bright ones. Meanwhile, LCD screens have their own native response curve, driven by voltage, which doesn’t follow this pattern. Without correction, this mismatch leads to inconsistent image quality across devices. Gamma correction applies a specific adjustment to the brightness levels, ensuring the image looks natural and detailed in both shadows and highlights.
Human Visual Perception Non-Linearity
Human eyes have a logarithmic response to light, meaning we’re more sensitive to changes in dark tones than in bright ones. For example, a small shift in shadow brightness stands out more than the same shift in a highlight. This non-linearity ensures perceptual uniformity, where digital changes in darker areas are more noticeable to us than in lighter areas.
LCD Panel Response Curve
LCDs control brightness using voltage to adjust how much light passes through each pixel, creating a native response curve. This curve doesn’t naturally align with our perception and differs from older CRT monitors, which had a more linear response due to their phosphor technology. As a result, uncorrected LCDs can display brightness in a way that feels off to our eyes.
Mismatch and the Need for Compensation
Without gamma correction, the mismatch between LCDs and our vision causes issues: dark areas can become crushed blacks, losing detail, while bright areas can turn into blown highlights, appearing too harsh. This leads to poor contrast and inconsistent image quality across screens. Gamma correction bridges this gap by applying a power-law adjustment (like V_out = V_in ^ (1 / γ), where γ is often 2.2), reshaping the brightness curve to match what our eyes expect. This ensures a consistent, natural-looking image, preserving details everywhere.
How do gamma compression and gamma expansion impact image fidelity?
Gamma is a fundamental concept in image processing that influences how images are stored, transmitted, and displayed. It addresses the non-linear relationship between pixel values and perceived brightness, ensuring that images maintain their quality and accuracy across different devices. This section explores two critical aspects of gamma: its role in compression and expansion, and its application to color channels and color spaces.
Gamma Compression vs. Gamma Expansion
In image processing, gamma is applied in two distinct stages: gamma compression and gamma expansion. These processes work together to optimize image data for storage and display while preserving visual fidelity.
Gamma Compression (Encoding)
Gamma compression occurs before an image is stored or transmitted. It reduces the brightness range of the image data, making it more efficient to store and less prone to data loss. Typically, a gamma value of 0.45 (the inverse of 2.2) is applied during this stage. This compression mimics the non-linear way human vision perceives light, allocating more precision to darker areas where our eyes are more sensitive. By doing so, it prevents data clipping—the loss of detail in very bright or very dark regions—and reduces banding, which appears as visible steps in smooth gradients like skies or shadows.Gamma Expansion (Decoding)
Gamma expansion happens when the image is displayed on a screen. It reverses the compression process, typically using a gamma value of 2.2, to restore the original brightness levels. This step ensures that the image appears as intended, with smooth transitions and accurate luminance. Without expansion, the image would look unnaturally dark or lack contrast, as the compressed data doesn’t align with how displays render light.
Together, these processes maintain image quality by avoiding artifacts like clipping (e.g., blown-out highlights or crushed shadows) and banding, ensuring that gradients remain smooth and details are preserved across the brightness spectrum.
Color Channels and Gamma
Gamma isn’t applied uniformly across an image; instead, it’s adjusted independently for each color channel—red (R), green (G), and blue (B). This per-channel application is essential for maintaining color accuracy and consistency, particularly in digital imaging workflows.
Per-Channel Application (R, G, B)
Each color channel has its own gamma correction, allowing precise control over how brightness and color are represented. For example, if the red channel were overcorrected relative to green and blue, the image could develop a color cast (e.g., appearing too warm or cool). By applying gamma separately, image processing ensures that transitions in brightness for each channel align with human perception, preserving the intended hues and avoiding unnatural shifts. This is especially critical in professional fields like photography and design, where even subtle inaccuracies can compromise the final output.Gamma’s Role in Color Spaces (sRGB, Adobe RGB)
Color spaces define how colors are represented numerically, and gamma is a key component in ensuring these representations translate correctly to displays. In the widely used sRGB color space, a gamma of 2.2 is standard, balancing brightness and contrast to match typical screen characteristics and human vision. This makes sRGB ideal for web content and consumer displays. In contrast, Adobe RGB, designed for professional applications, also uses a gamma of 2.2 but supports a wider range of colors (a larger gamut). Gamma ensures that this expanded range is displayed accurately, preventing distortion or loss of vibrancy. Without proper gamma handling, colors in either space could appear inconsistent across devices, undermining the reliability of the color space.
How to Ensure Color Accuracy and Consistency Across Different LCD Displays?
Ensuring color accuracy and consistency across different LCD displays is essential for both general users and professionals who rely on precise color reproduction. Variations in display technology and settings can lead to mismatched colors, but with the right tools and methods, these differences can be minimized. Below, we explore how to achieve this through cross-device consistency and its impact on professional workflows.
Cross-Device Consistency
Different LCD displays often have varying native gamma curves, which affect how colors and brightness levels are displayed. This variation can make the same image look different across devices. To solve this, two key methods are widely used: ICC profiles and standardized gamma values.
These tools work together to match images across devices, reducing discrepancies caused by hardware differences.
ICC Profiles: These are data files that describe a device’s color characteristics, such as its color space, gamma, and white point. When an image is shown on an LCD, the ICC profile translates the image’s colors to match the display’s capabilities. This ensures that colors remain accurate and consistent, no matter the device.
Standardized Gamma Values: Standards like sRGB, with a gamma of 2.2, and BT.1886, used for video, provide a common reference for color reproduction. The sRGB gamma of 2.2 aligns with the typical response of many displays, while BT.1886 adjusts the gamma curve based on the display’s black level, improving consistency in darker scenes. By calibrating all displays to these standards, images can look the same across different LCDs.
Impact on Professional Workflows
In fields like photography, video post-production, and graphic design, color accuracy is non-negotiable. Professionals need every display in their workflow to show colors consistently to avoid errors in editing, grading, or design.
One major issue is mid-tone shifts, where the middle range of brightness appears too light or dark due to gamma differences. Another is color casts, where unintended tints alter the image. By calibrating displays with ICC profiles and adhering to standards like sRGB or BT.1886, these problems can be avoided. This ensures that every step of the workflow—from creation to review—maintains the intended color accuracy.
Photography: Photographers rely on accurate colors when retouching images. A mismatch between displays can lead to incorrect adjustments, ruining the final output.
Video Post-Production: Editors use multiple screens to check footage. Inconsistent colors can affect decisions about lighting or color grading, especially in dark or subtle scenes.
Graphic Design: Designers need precise color matching for branding and print work. Variations between displays can lead to designs that look different when viewed elsewhere.
What Are the Challenges in Maintaining Color Consistency?
To overcome these, regular calibration with tools like colorimeters is necessary. Using a color management system that applies ICC profiles consistently also helps. Controlling the viewing environment—such as using neutral lighting—further improves results.
Achieving consistency isn’t without obstacles. Several factors can disrupt color accuracy across LCD displays:
Manufacturing Variations: Even identical models may have slightly different native gamma curves due to production differences.
Aging Components: Over time, an LCD’s backlight and color filters degrade, shifting its color output.
Ambient Lighting: The surrounding light affects how colors appear. A display calibrated in a dark room may look off in bright conditions.
Why Gamma Matters in LCD Displays
Gamma defines how a display translates brightness levels. A gamma of 2.2, as in sRGB, ensures that brightness steps align with human perception. Without proper gamma correction, images can look washed out or overly dark. On LCDs, gamma settings must be adjusted to match standards, ensuring uniform color and tone across devices.
Tools for Color Accuracy
These tools make it easier to maintain consistency, especially in professional settings.
Colorimeters: Devices that measure a display’s output and create custom ICC profiles.
Software: Programs like DisplayCAL or manufacturer tools apply these profiles and adjust monitor gamma.
Hardware Calibration: Some high-end LCDs have built-in sensors for ongoing smart correction.
FAQ
What role do inconsistent gamma settings play in perceptual mismatches across displays?
Inconsistent gamma settings change how each display shows shadows, mid-tones, and highlights. This causes the same image to look lighter, darker, or have color shifts when viewed on different screens. Users may notice poor detail in dark or bright areas.
What are some tips to standardize gamma LCD settings for uniformity?
Use ICC profiles and set all displays to the same gamma standard, such as sRGB (gamma 2.2). Calibrate each screen with a colorimeter and use the same test patterns. Avoid using default settings, which can vary by brand and model.
How can I troubleshoot problems like banding, color inaccuracies, or brightness issues?
Check that the display’s gamma curve matches the content’s intended gamma. Use test gradients to spot banding. Adjust gamma and color settings in the display’s OSD menu. If possible, update firmware and refresh LUTs.
What practical solutions exist for fixing gamma-related display flaws?
Regularly recalibrate screens using calibration tools. Use hardware LUTs for precise gamma correction. For embedded or small LCDs, try built-in gamma adjustment knobs or OSD sliders and test the results with grayscale images.
How do gamma settings impact users with visual impairments, such as reduced contrast sensitivity?
Poor gamma settings can make it harder for users with low vision to see differences between similar tones. This can hide important details or make text less readable.
What are good practices for making gamma adjustment more inclusive?
Provide easy-to-find gamma and contrast settings in user menus. Offer multiple preset modes (e.g., high-contrast) for users with different needs. Consider using adaptive gamma algorithms that adjust to ambient light and viewer feedback.
