The self mutual projected capacitive touchscreen combines two methods of touch detection: self-capacitance and mutual-capacitance . These methods work together to provide accurate and responsive touch input. It’s widely used in modern devices for its precision, durability, and support for multi-touch features.
In self-capacitance, each electrode measures changes in its own charge. In mutual-capacitance, two crossing electrodes measure changes caused by touch. Combining both methods improves touch accuracy and allows for multi-touch gestures like zoom and swipe. This makes PCAP touch ideal for applications needing precise input, like industrial control panels and automotive screens .
How does a self-mutual projected capacitive touchscreen work?
A self-mutual projected capacitive touchscreen uses self-capacitance and mutual capacitance to detect touch. Self-capacitance measures changes in an object’s electrical charge, while mutual capacitance detects touch by sensing changes when conductive objects like fingers disrupt the screen’s electric field.

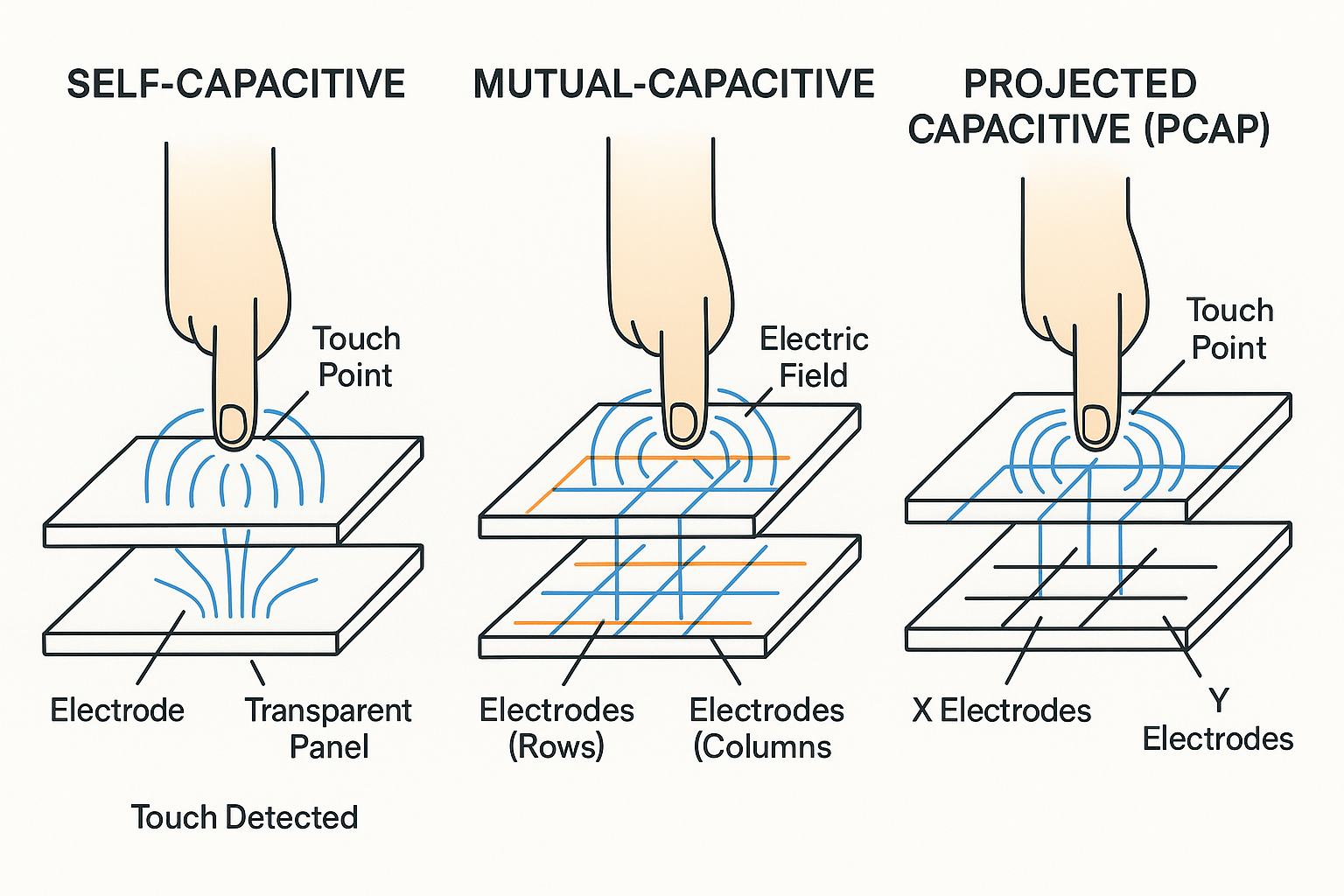

How Are Self-Capacitance and Mutual-Capacitance Different?
Self-capacitance detects touch by measuring changes in charge at a single electrode. It is sensitive but struggles with multi-touch because it cannot separate multiple touch points.
Mutual-capacitance , on the other hand, measures changes between crossing electrodes in an X-Y matrix . It detects multiple touches accurately, enabling modern gestures like zoom and rotate.
For example, in a smartphone, mutual-capacitance makes two-finger zoom possible. Combining both in a projected capacitive touchscreen offers the best of both worlds: sensitivity and multi-touch support.

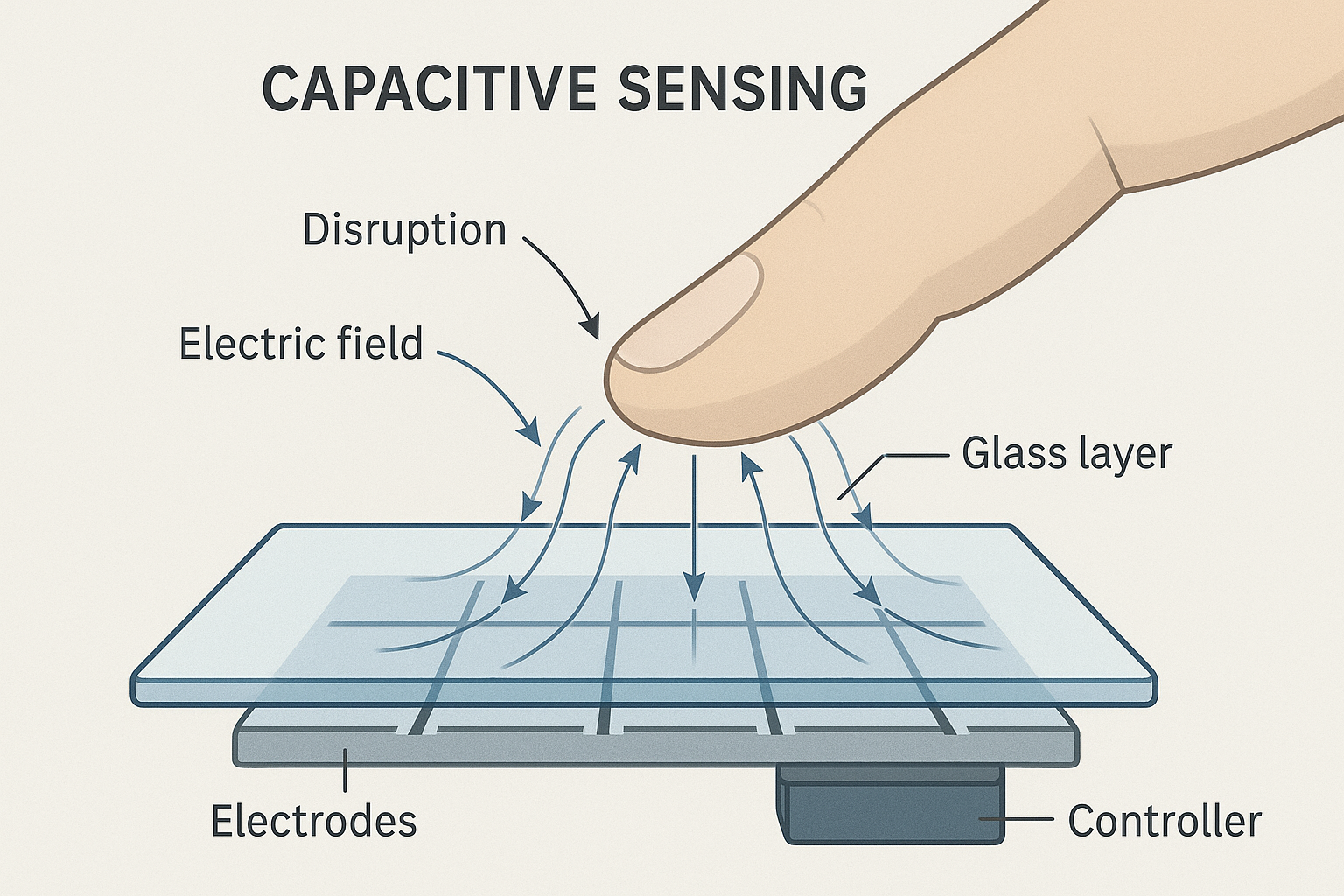

How Does a Capacitive Touch Sensor Detect Touch?
A capacitive touch sensor works by sensing changes in an electric field. When a finger touches the screen, it disrupts the field, creating a capacitive coupling effect.
The electrode grid pattern in the screen detects these disruptions. The grid uses a transparent conductive layer , often made of Indium Tin Oxide (ITO) , to keep the touch sensor clear and responsive.
The touch controller IC processes the data from the grid. It determines where the finger touched and sends this information to the device. This setup allows for fast, accurate, and smooth touch performance.
Why Is Self Mutual Projected Capacitive Touch Technology Popular?
The self mutual projected capacitive touchscreen is popular because it is reliable, accurate, and supports multi-touch gestures. Here’s why industries use it:
- Durability : It withstands heavy use without losing accuracy.
- Waterproof Touch Detection : It works even with water on the surface.
- Glove Touch Support : It detects input even with gloves.
- High Sensitivity Touch : It responds quickly and accurately to light touches.
- Noise Immunity : It resists electrical interference for stable performance.
This makes it suitable for automotive HMIs , medical devices, and industrial control panels , where reliability is key.
What Role Does the Electrode Grid Pattern Play in Touch Detection?
The electrode grid pattern is critical in a projected capacitive touch panel . It forms an invisible network of lines that detect where a finger touches the screen.
In mutual-capacitance , the grid is made of crossing electrodes in an X-Y matrix . The points where the lines cross act as sensors. When a finger touches the screen, it changes the charge between the electrodes.
Using materials like Indium Tin Oxide (ITO) ensures the grid remains transparent and conductive. This technology allows for precise, fast, and multi-touch input, even in complex devices.
How Does Noise Immunity Improve Capacitive Touchscreen Performance?
Noise immunity ensures that the touchscreen works correctly, even in environments with electrical interference. Electrical noise, caused by nearby devices or power sources, can disrupt touch detection.
The touch controller IC uses filters to remove this interference. Combining self-capacitance and mutual-capacitance helps improve resistance to noise.
For example, in an industrial environment, machines can create strong electrical noise. Noise filtering keeps the touchscreen working smoothly, ensuring accurate touch performance.
Can Capacitive Touchscreens Detect Input Through Gloves or Water?
Yes, modern projected capacitive touchscreens can detect input through gloves or water. By adjusting the capacitive touch sensor’s sensitivity, the screen can respond to lighter touches.
- Glove Touch Support : The touch detection algorithm is fine-tuned to recognize touches through gloves.
- Waterproof Touch Detection : The system filters out false touches caused by water droplets.
This makes self mutual projected capacitive touchscreens perfect for industries like healthcare, automotive, and industrial automation, where gloves or moisture are common.
What Are the Benefits of PCAP Touchscreens Compared to Resistive Screens?
Projected capacitive touchscreens (PCAP) have several advantages over resistive touchscreens:
- Higher Sensitivity : Detects light touches accurately.
- Multi-Touch Detection : Supports gestures like zoom and swipe.
- Durability : Scratch-resistant and long-lasting.
- Waterproof Capability : Works in wet conditions.
- Fast Response Time : Provides smooth and quick touch interactions.
These benefits make PCAP touch ideal for high-performance applications like smartphones, medical devices, and industrial equipment.
What Applications Use Self Mutual Projected Capacitive Touchscreens?
Self mutual projected capacitive touchscreens are used in many applications requiring precision and durability:
- Automotive HMIs : Used in infotainment systems and dashboards.
- Medical Devices : Touch panels for diagnostic tools and monitoring equipment.
- Industrial Control Panels : Used in harsh environments where reliability is important.
- Consumer Electronics : Smartphones, tablets, and wearable devices.
- Retail Kiosks : Self-service machines for payments and orders.
These touchscreens work well in tough conditions while delivering accurate and fast touch performance.
What Is a Touch Controller IC and Why Is It Important?
A touch controller IC is a chip that processes input from the capacitive touch sensor . It plays an important role in making the touchscreen accurate and reliable.
The IC:
- Processes Data : Detects touch location and sends it to the device.
- Filters Noise : Ensures noise immunity for stable operation.
- Supports Gestures : Recognizes multi-touch gestures like swipe and zoom.
Modern touch controller ICs improve performance in challenging conditions like electrical noise or wet surfaces.
Conclusion
Self mutual projected capacitive touchscreens combine self-capacitance and mutual-capacitance for superior accuracy, durability, and multi-touch support. This technology is widely used in automotive, industrial, and medical applications, offering advanced features like waterproof touch detection and noise immunity .
FAQ
1. How does a self mutual projected capacitive touchscreen work?
It combines self-capacitance and mutual-capacitance to detect touch by measuring changes in an electric field.
2. Can capacitive touchscreens work with gloves?
Yes, capacitive touchscreens can detect input through gloves by adjusting sensor sensitivity and algorithms.
3. Why are projected capacitive touchscreens better than resistive screens?
PCAP screens offer multi-touch support, durability, waterproof capabilities, and faster response times.
4. What materials are used in capacitive touchscreens?
Materials like Indium Tin Oxide (ITO) are used for transparent conductive layers in capacitive screens.
5. What industries use self mutual projected capacitive touchscreens?
Industries like automotive, medical, retail, and industrial automation use these screens for their precision and reliability.
