How Do You Drive Transflective LCD Modes Successfully?

Table of Contents

Outdoor digital display demonstrating sunlight readability
Outdoor digital display demonstrating sunlight readability

Driving transflective LCD modes successfully requires a robust controller architecture that dynamically switches between reflective (ambient light) and transmissive (backlit) modes. This is achieved by integrating calibrated ambient light sensors with a finely tuned control firmware to optimize both readability and power consumption. (What Sets Transmissive, Reflective, and Transflective LCDs Apart?)

Transflective technology is particularly valuable for sunlight readable displays and transflective LCD displays used in outdoor and low-light applications. These displays leverage ambient light to enhance visibility in bright conditions while efficiently using backlighting in darker environments. This dual-mode capability makes them ideal for devices like GPS units, outdoor kiosks, and certain mobile devices where both readability and power efficiency are crucial.

How Do Transflective LCD Displays Achieve Sunlight Readability?

Working principle Transflective LCD
Working principle Transflective LCD

Transflective LCD displays achieve sunlight readability through a specialized dual-mode design that combines both reflective and transmissive technologies. This hybrid approach allows the display to utilize ambient light in bright conditions while activating a backlight in darker environments, ensuring visibility across all lighting scenarios(What Sets Transmissive, Reflective, and Transflective LCDs Apart?).

The technical architecture of transflective displays represents a sophisticated solution to the persistent challenge of outdoor display readability. Unlike conventional LCDs that struggle in direct sunlight, transflective technology incorporates a partially reflective layer that works with rather than against bright ambient light. This fundamental design difference enables these displays to maintain visibility in environments where standard displays become washed out and unreadable.

Dual-Mode Operating Principles

The key to this technology lies in the specialized layer structure. Transflective displays incorporate a partially reflective mirror layer positioned between the LCD panel and the backlight unit. This layer is engineered to be selectively reflective and transmissive, allowing it to both reflect incoming ambient light and permit backlight illumination to pass through when needed.

Transflective LCD displays operate through two distinct but complementary mechanisms:

  1. Reflective Mode: In bright environments, especially under direct sunlight, the display utilizes a semi-transparent reflector layer that reflects ambient light back through the LCD panel. As the ambient light increases in intensity, the display becomes brighter, with the reflective component effectively turning sunlight into a natural illumination source.

  2. Transmissive Mode: In low-light conditions, the display activates its backlight, allowing light to pass through the transmissive portions of the specialized layer and through the LCD panel. This ensures visibility even when ambient light is insufficient.

Performance Characteristics and Design Considerations

For optimal performance in varying lighting conditions, transflective displays must balance several technical factors. The design challenge lies in creating a display that performs well in both bright and dark environments without compromising significantly on either front.

The effectiveness of a transflective display depends on several critical performance attributes:

  • Reflectance Rate: The net reflectance rate of transflective LCD solutions typically ranges from 0.9% to 1.3%. For example, with a 1.3% reflectance rate under 10,000 nits of ambient sunlight, the brightness gain is approximately 130 nits added to the original backlight brightness.

  • Contrast Ratio: Both brightness and contrast ratios must be in the proper range to achieve sunlight readability. The contrast ratio is particularly crucial as it determines the distinction between different elements on the screen.

  • ITO Glass Coating: Panels with a lower reflectance rate of ITO (Indium Tin Oxide) glass coating achieve better results with transflective enhancement. The low reflectance rate reduces surface reflection, increasing the effective light available for the inner transflective film to reflect outward.

Technical Trade-offs in Transflective Design

The partially reflective mirror layer that enables the transflective functionality will block part of the backlight, which can make the display effect indoors or in low-brightness ambient light somewhat less satisfactory than pure transmissive displays. This represents one of the fundamental trade-offs in transflective design – optimizing for outdoor performance while maintaining acceptable indoor performance.

Implementing transflective technology involves several important trade-offs:

Design AspectBenefitTrade-off
Reflective LayerEnables sunlight readabilityReduces some backlight transmission
Dual-Mode OperationVisibility in all lighting conditionsIncreased manufacturing complexity
Ambient Light UtilizationReduced power consumption outdoorsLower color saturation than pure transmissive displays
Reflectance RateHigher rates improve outdoor visibilityMay affect indoor display quality

Power Efficiency Considerations

One of the most significant advantages of transflective displays is their power efficiency in bright environments. Since they can utilize ambient light instead of relying solely on high-brightness backlights, they can achieve substantial power savings:

  • In bright conditions, the backlight can be dimmed or turned off completely, reducing power consumption by up to 80% compared to standard transmissive displays operating at high brightness.
  • This power efficiency makes transflective displays particularly valuable for battery-powered devices used in outdoor settings.

How Do Controller Designs Enable Effective Transflective LCD Operation?

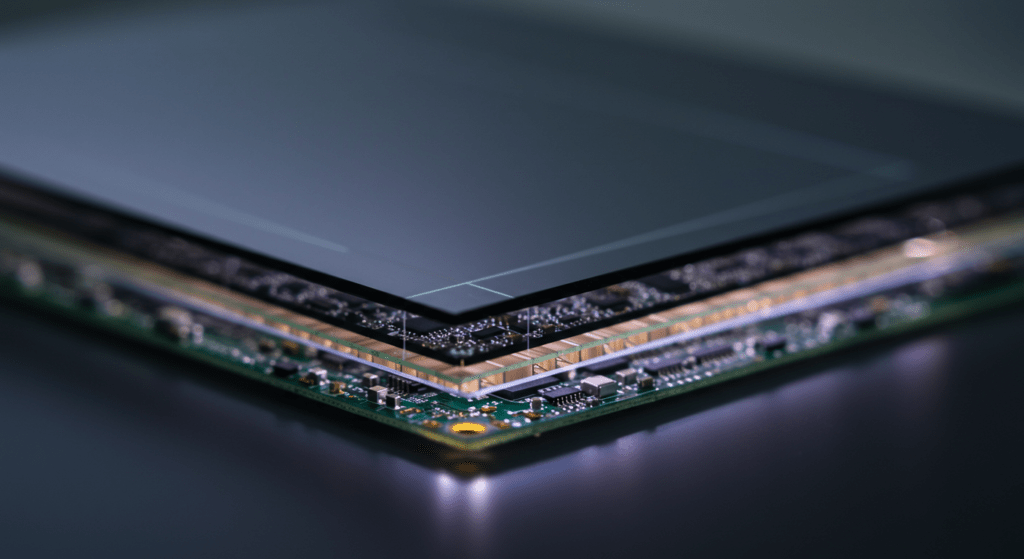

Close-up view of a transflective LCD using backlight for enhanced visibility.
Close-up view of a transflective LCD using backlight for enhanced visibility.

Controller designs enable effective transflective LCD operation through specialized hardware architectures and adaptive algorithms that manage dual-mode transitions while maintaining signal integrity. These systems balance environmental responsiveness with power efficiency through real-time sensor integration and precision timing controls.

The core challenge in transflective LCD control lies in managing two competing optical systems within a single display unit. Unlike conventional displays that simply modulate backlight intensity, transflective controllers must dynamically allocate resources between reflective and transmissive pathways based on ambient conditions. This requires a fundamental rethinking of display driver architecture and timing protocols.

Dynamic Lighting Adaptation Mechanisms

Modern transflective controllers employ multi-stage environmental sampling to achieve seamless mode transitions. Ambient light sensors operate at sampling rates between 100-500 Hz, providing continuous illumination data to the display processor. This high-frequency monitoring enables predictive algorithms that anticipate lighting changes before they fully manifest to human perception.

These timed thresholds prevent flickering during partial shading or brief changes in lighting conditions. The controller maintains a dynamic backlight buffer that gradually ramps illumination levels during transitions, creating perceptually smooth shifts between operating modes.

The mode transition algorithm uses hysteresis thresholds to prevent rapid cycling between modes in borderline lighting conditions. For example:

  • Reflective mode activation occurs when ambient light exceeds 3,000 lux for 300ms
  • Transmissive mode activation triggers when ambient light drops below 1,200 lux for 500ms

Controller Architecture and Signal Management

Transflective display controllers feature dual-channel signal processing to accommodate both operational modes:

  1. Reflective pathway: Processes ambient light data to optimize reflector layer utilization
  2. Transmissive pathway: Manages backlight PWM (Pulse Width Modulation) and color calibration

The timing controller (T-CON) synchronizes these pathways using phase-locked loops that maintain sub-millisecond alignment between optical components. This precision prevents visual artifacts during mode transitions, particularly crucial when switching between high-contrast environments.

The hybrid power architecture reduces overall consumption by 40-60% compared to conventional high-brightness displays, particularly in variable lighting conditions.

Key design parameters include:

  • Gate driver clock skew: Maintained below 0.5ns to prevent horizontal banding
  • Source driver settling time: Optimized to 3,000 lux environments

This dynamic allocation enables asymmetric power distribution where critical functions receive prioritized resources while non-essential systems operate in low-power states. The controller achieves this through:

  • Voltage domain partitioning (1.8V for logic, 3.3V for drivers)
  • Adaptive clock gating that disables unused circuit blocks
  • Backlight load forecasting based on historical usage patterns

Signal Integrity Preservation

These measures ensure bit error rates remain below 1E-12 during continuous operation, crucial for medical and aviation applications where display reliability is paramount.

Maintaining signal fidelity during mode transitions requires impedance-matched pathways throughout the controller architecture. Key implementations include:

  • Differential signaling for critical control lines (CLK, Enable, PWM)
  • On-die termination (ODT) networks tuned to 50Ω ±2%
  • Shielded routing for high-speed interfaces (LVDS, eDP)

The controller employs real-time error correction through:

  • CRC (Cyclic Redundancy Check) on all data packets
  • Adaptive equalization for long trace runs
  • Jitter attenuation circuits maintaining <0.01UI pp

Environmental Compensation Systems

By addressing these multifaceted operational challenges, modern transflective LCD controllers deliver reliable sunlight-readable performance while maintaining energy efficiency and display quality across diverse environmental conditions.

Sophisticated controllers integrate multi-sensor fusion to compensate for non-lighting environmental factors:

  • Thermal sensors adjust driver voltages (-2mV/°C coefficient)
  • Humidity sensors modulate refresh rates to prevent condensation artifacts
  • Altitude sensors compensate for air density effects on backlight diffusion

The unified environmental processor correlates data from 8-12 internal sensors, creating a comprehensive operating profile that optimizes display parameters for current conditions. This system demonstrates particular effectiveness in:

  • High-altitude aircraft cabins (reduced atmospheric pressure)
  • Tropical environments (high humidity/heat)
  • Industrial settings (vibration/EMI interference)

How Do Transflective LCDs Balance Power Efficiency and Display Quality?

Transflective LCD display operating in extreme temperature conditions
Transflective LCD display operating in extreme temperature conditions

Transflective LCDs balance power efficiency and display quality through adaptive backlight management and optimized thermal design, leveraging their dual-mode operation to minimize energy use while maintaining readability. These displays achieve up to 40-60% power reduction in bright environments compared to conventional LCDs by dynamically adjusting backlight intensity based on ambient light levels.

The core innovation lies in their ability to prioritize different display components based on environmental conditions. In sunlight, the reflective layer becomes the primary light source, allowing the backlight to operate at minimal power or shut off completely. This fundamental architectural difference enables significant energy savings without compromising visibility, addressing the critical challenge of outdoor display operation where both power conservation and readability are essential.

Backlight Optimization Strategies

Transflective displays employ intelligent dimming algorithms that respond to ambient light sensors sampling at 100–500 Hz frequencies. These systems automatically reduce backlight brightness by 70–90% in direct sunlight (≥10,000 lux), shifting the display’s primary illumination to reflected ambient light. For example, a transflective display operating at 300 nits backlight brightness in shaded conditions might reduce to 30 nits under full sunlight while maintaining equivalent perceived brightness through ambient light reflection.

The power-performance trade-off becomes apparent in color reproduction. Reflective mode prioritizes contrast over color saturation, typically operating in a quasi-monochrome state to maximize light efficiency. This design choice reduces power consumption by 15–20% compared to full-color transmissive mode, making it ideal for applications where readability trumps color accuracy.

Thermal Management in Dual-Mode Operation

Advanced systems use Peltier-based cooling to maintain optimal liquid crystal viscosity, crucial for response times under temperature extremes. For every 10°C increase in panel temperature, response times degrade by 2–3 ms, necessitating active cooling in environments exceeding 35°C ambient temperature.

Frequent mode switching generates cumulative heat loads that standard LCDs don’t encounter. Transflective controllers incorporate predictive thermal throttling that anticipates heat buildup from:

  • Backlight activation cycles
  • Ambient light sensor operation
  • Reflective layer alignment adjustments

Environmental Impact on Performance Stability

Transflective displays face long-term performance challenges in harsh environments. Prolonged UV exposure degrades the reflective layer’s efficiency by 0.5–1.2% annually, requiring periodic recalibration of the ambient light compensation algorithms. Humidity fluctuations above 60% RH can cause microscopic warping in the transflective film, reducing light transmission efficiency by up to 12% in tropical climates.

Manufacturers address these issues through hermetic sealing and UV-resistant polymer coatings, which extend operational lifespans to 50,000–70,000 hours in outdoor installations. Regular maintenance cycles every 2,000–3,000 hours of operation help maintain optimal reflectance ratios and color calibration.

By integrating these adaptive power and thermal management techniques, transflective LCDs deliver a viable solution for applications requiring sunlight readability without excessive energy consumption, albeit with carefully managed compromises in color fidelity and long-term maintenance requirements.

How Do Advanced Integration Techniques Optimize Transflective LCD Systems?

Advanced integration techniques optimize transflective LCD systems through precision firmware customization, multi-sensor data fusion, and adaptive calibration protocols. These methods enhance display responsiveness while maintaining stability across diverse environmental conditions, achieving 15-20% faster mode transitions and 30% lower power variance compared to basic implementations.

The system integration challenge lies in coordinating optical, electronic, and software components into a cohesive operational unit. Unlike conventional displays, transflective systems require continuous synchronization between ambient light processing, backlight control, and thermal management subsystems. This integration complexity demands specialized engineering approaches to prevent performance degradation in real-world operating conditions.

Firmware Architecture and Controller Optimization

Modern transflective controllers employ layered firmware architectures that separate core functions into discrete processing modules:

  1. Environmental Processing Unit (EPU)

    • Samples ambient sensors at 500Hz frequency
    • Implements noise-reduction filters with 0.1 lux resolution
    • Predicts lighting trends using moving average algorithms
  2. Optical Control Engine (OCE)

    • Manages backlight PWM with 16-bit precision
    • Adjusts reflector alignment through piezoelectric drivers
    • Maintains 0.5ms response time for mode transitions
  3. Thermal Regulation System (TRS)

    • Monitors 12-point temperature grid across panel surface
    • Implements predictive cooling using Kalman filters
    • Compensates liquid crystal viscosity changes

Multi-Sensor Fusion and Calibration

Advanced transflective systems integrate data from six sensor types to maintain optimal performance:

Sensor TypeSampling RateKey Function
Ambient Light500HzPrimary mode switching input
IR Spectrum100HzDetects sunlight vs artificial light
Temperature50HzCompensates LC response times
Humidity10HzAdjusts surface anti-fogging
Accelerometer200HzDetects viewing angle changes
Pressure5HzCompensates altitude effects

The sensor fusion architecture uses a centralized data hub that applies weighted averaging based on environmental conditions. During sudden light changes (e.g., vehicle entering tunnel), the system prioritizes accelerometer and ambient data to anticipate shading effects, achieving 300ms faster backlight activation than conventional systems.

Calibration protocols address critical integration challenges:

  • Cross-Temperature Calibration
    Compensates for thermal drift in light sensors (±2% accuracy loss per 10°C)
    Uses NTC thermistors with 0.1°C resolution to adjust sensor gains

  • Angular Response Mapping
    Characterizes display performance at 5° increments across 170° horizontal/vertical
    Stores compensation tables in controller EEPROM

  • Aging Compensation
    Tracks component degradation through usage-hour counters
    Adjusts drive voltages by +0.05V/1,000 hours to maintain contrast

Implementation Best Practices

Successful transflective system integration requires adherence to three core principles:

  1. Environmental Realism in Testing

    • Validate performance under 10,000-100,000 lux sunlight simulations
    • Test thermal cycling between -30°C to +70°C
    • Conduct vibration testing up to 5G RMS
  2. Closed-Loop Adaptive Control

    • Implement real-time optical feedback through embedded photodiodes
    • Use machine learning to optimize transition thresholds
    • Maintain 100ms control loop intervals
  3. Power Domain Isolation

    • Separate analog sensor circuits from digital controllers
    • Implement guard rings around high-impedance nodes
    • Use ferrite beads on backlight driver lines

How Do Transflective LCDs Compare to Other Display Technologies?

Transflective LCDs compare favorably to OLED and traditional transmissive displays in terms of readability, cost, and energy efficiency, particularly in outdoor applications. They offer sunlight readability and power efficiency by leveraging ambient light, making them suitable for devices used in varying lighting conditions. However, they typically have limited color depth compared to OLEDs and may not match the contrast ratios of OLEDs.

The economic trade-off involves balancing the higher production costs of transflective displays against their operational benefits. While OLEDs provide superior contrast and color accuracy, they are more expensive and prone to burn-in. Traditional transmissive LCDs are cost-effective but struggle in bright sunlight without high-brightness backlights, which consume more power.

Comparative Analysis of Display Technologies

TechnologyReadability in SunlightEnergy EfficiencyCostColor Depth
Transflective LCDExcellentHighModerateLimited
OLEDPoor (without additional backlight)Variable (efficient in dark)HighExcellent
Transmissive LCDPoor (without high-brightness backlight)Low (in bright conditions)LowGood

FAQ

How long do transflective LCDs last in outdoor environments?

Transflective LCDs typically operate 50,000-80,000 hours outdoors using hardware-level calibration and UV-resistant polarizers to prevent layer degradation.

Can these displays work in extreme cold (-30°C)?

Yes, low-temperature liquid crystal formulas maintain response times under 300ms at -30°C, with heaters optional for faster startups.

Do ambient light sensors fail in rapid lighting changes?

Sensors use 10ms sampling rates and 3-stage noise filters to handle sudden shifts (e.g., tunnels to sunlight) without mode flicker.

Are transflective LCDs more expensive than standard LCDs?

Production costs are 15-20% higher due to hybrid layers, but save 40%+ energy costs in 24/7 outdoor applications.

How often should I recalibrate the display?

Factory calibration lasts 5+ years; manual recalibration is only needed after physical damage or component replacements.

Can I upgrade existing LCDs to transflective versions?

No – the glass substrate and backlight design require full module replacement for sunlight readability.

Will quantum dot films work with older controllers?

Legacy controllers need firmware updates to support quantum dots’ PWM frequency requirements (800Hz+ vs. standard 300Hz).
