You need to match your LCD module’s interface—such as SPI, I²C, parallel, or advanced types—to what your microcontroller unit offers. The bit size, like 8-bit or 32-bit, sets how much data your microcontroller can handle for graphics, animation, or simple text.
Check the memory and number of I/O pins your project needs before you pick a microcontroller. Some microcontroller types work better with small micro lcd displays, while others deliver the speed for high-resolution or touch screens.
Think about your power limits, especially for battery devices, and look for microcontroller types with low-power modes. Your choice of microcontroller processor and architecture will affect how easily you can develop and update your project.
You should compare microcontroller boards and use datasheet details or selector tools to weigh your options. Each application, from industrial microcontroller systems to hobby projects, benefits from matching the right microcontroller features to the lcd embedded system needs.
How to Choose the Right LCD Interface for Your Microcontroller?
To choose the right LCD interface for your microcontroller, you need to consider the interface types supported by both the LCD module and the MCU, as well as the bandwidth and speed requirements of your application. Serial interfaces like SPI and I²C work well for projects with few pins, but they may not handle the data rates needed for bigger displays. Parallel interfaces give you higher bandwidth, but they use more pins, so check if your MCU has enough available.
Understanding Different LCD Interfaces
- SPI (Serial Peripheral Interface):
- Pin count: 4 (MOSI, MISO, SCLK, CS)
- Max clock: SPI cap: 50MHz
- Throughput: ~50 Mb/s, ideal for small color or mono displays
- I²C (Inter-Integrated Circuit):
- Pin count: 2 (SDA, SCL)
- Max clock: 3.4 MHz (High-Speed mode)
- Throughput: ~3.4 Mb/s, suited for character or tiny graphic screens
- 8-Bit Parallel:
- Pin count: 11+ (D0–D7, RS, WR, RD, CS)
- Data rate: up to 100 MB/s on a 100 MHz bus
- Best for medium-size displays with moderate refresh needs
- MIPI-DSI & LVDS:
- Pin count: 4–8 lanes + clocks
- Lane speed: up to 1 Gb/s per lane
- Required: MCU with built-in DSI controller or external PHY
Ensuring Compatibility with Your MCU
- Check MCU Interface Support: Look at the microcontroller datasheet to see if it supports the interface protocol. This confirms the MCU can talk to the LCD module.
- Match Bandwidth and Speed Requirements: Make sure the MCU clock speed and power can manage the data rates the LCD screen needs. Check pin availability too.
How to Decide Between Multiple Interface Options for an LCD Module?
When an LCD module offers multiple interfaces, pick the one that balances pin usage, data rate requirements, and MCU capabilities. For example, if your microcontroller has lots of pins and you want fast refresh rates, a parallel interface might work best. But if pins are tight, a serial interface could be smarter, even if it slows things down a bit.
Additional Considerations
- Some microcontrollers have hardware boosts for certain interfaces, making them run better.
- The interface you pick changes how tricky the software drivers get; serial interfaces often need simpler ones.
- Watch for extra hardware like level shifters if the MCU and LCD module voltages don’t match.
What Bit Size Should You Choose for Your Microcontroller in LCD Applications?
The bit size of a microcontroller determines its ability to handle LCD display tasks, so select one based on your project’s needs. 8-bit MCUs suit simple, low-cost monochrome displays, while 32-bit MCUs excel in complex graphics or touch interfaces. Choosing the right bit size ensures your MCU delivers enough performance without wasting resources.
Which MCU Architecture Best Suits Your LCD Project?
Pick an MCU architecture based on power needs and performance for your LCD module. Low-power architectures extend battery life in portable devices, while high-performance architectures support rich peripherals for advanced embedded microcontrollers. This choice shapes your project’s efficiency and capability.
- Low-Power Architectures: These prioritize energy savings, ideal for battery-powered devices or small microcontrollers. They reduce power use but may limit speed.
- High-Performance Architectures: These offer fast processing and extensive peripherals for mcu in embedded systems. They suit graphics-heavy or interactive displays but consume more power.
What Performance and Memory Should Your Microcontroller Have for LCD Displays?
Your microcontroller needs enough performance and memory to match the LCD display demands. Basic displays require minimal processing power, while advanced displays with video or touch need high-speed processors and ample memory. Selecting the right specs ensures smooth operation without overpaying for unused capacity.

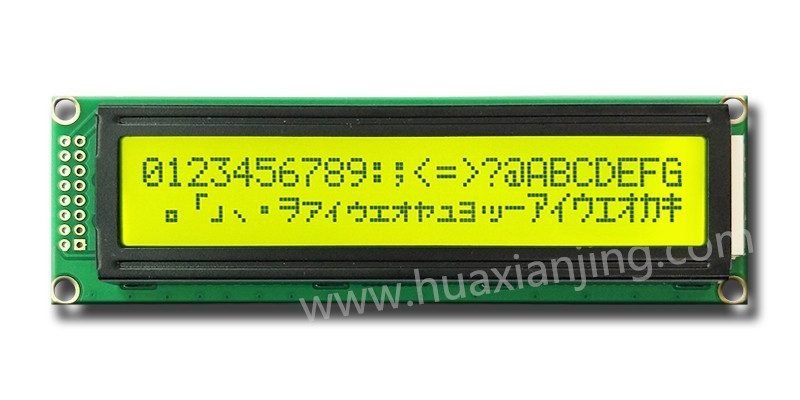

- Basic Displays: Text or simple graphics on monochrome displays work with low-end MCUs. These need little processing power and small memory for basic tasks.
- Moderate Displays: Color displays with basic GUIs demand mid-range microcontrollers. They require more speed and memory for rendering graphics smoothly.
- Advanced Displays: Video, animations, or touch interfaces need high-performance MCUs. These rely on fast processors and large memory to handle complex rendering.
Key Memory Specifications for LCD Applications
- Flash Memory: This stores code, fonts, and graphics assets for the LCD screen. For example, a color display with GUIs might need 512 KB or more of flash.
- RAM: Frame buffers and runtime data for LCD rendering live here. A 320×240 color display might require 150 KB of RAM for a single frame buffer.
- External Memory: Large micro LCD displays may need external memory if internal flash or RAM falls short. This adds cost but supports high-resolution or video tasks.
How Much Memory Is Enough for Your LCD Project?
The memory needed depends on the display complexity and application. Basic displays might run on 64 KB flash and 8 KB RAM, but advanced displays with animations could demand 1 MB flash and 256 KB RAM or more. Always check frame buffer size and asset storage needs to avoid bottlenecks.
- Calculate frame buffer size: A 320×240 display at 16-bit color needs 153.6 KB of RAM per frame.
- Account for graphics assets: Complex fonts or icons can consume hundreds of KB in flash.
- Consider external memory for video or large displays to keep costs down while meeting memory demands.
How Many I/O Pins Does Your Microcontroller Need for an LCD Project?
Your microcontroller must have enough I/O pins to handle LCD connections and any additional features like touch inputs. Basic LCDs may need 8–10 pins for data and control signals, while advanced setups with sensors or touch could require 20+ pins. Checking pin requirements early prevents hardware limitations.
- LCD Connections: Data lines, control signals, and backlight pins typically use 6–12 pins depending on the interface (e.g., SPI needs fewer than parallel). Always verify the micro LCD display datasheet.
- Additional Features: Touch inputs, sensors, or external controls add pin demands. For example, a capacitive touch panel might need 4–6 extra pins for communication.
Supporting Peripherals for LCD Control
- Timers: These manage display refresh rates to keep visuals smooth. A 60 Hz refresh requires precise timer configuration to avoid flickering.
- PWM: Pulse Width Modulation controls backlight brightness efficiently. It adjusts power to the LCD backlight without wasting energy.
- Communication Modules: Serial interfaces like SPI or I²C, or advanced interfaces like MIPI-DSI, rely on dedicated modules in the MCU for reliable data transfer.
Which Peripherals Are Essential for Efficient LCD Integration?
Timers, PWM, and communication modules are critical for LCD control, but their setup depends on your display type. For instance, a small microcontroller driving a monochrome display needs minimal peripherals, while a color TFT with touch demands robust timer and communication support. Selecting an MCU with these peripherals ensures efficient performance.
- Timer Precision: A timer with microsecond accuracy supports refresh rates for video or animations without lag.
- PWM Channels: At least one PWM channel is needed for backlight control; multiple channels allow dynamic brightness adjustments.
- Interface Support: Confirm the MCU has hardware modules for your interface (e.g., SPI or I²C) to reduce software overhead and boost speed.
Which MCU and LCD factors most affect total power draw?
MCUs in Idle mode shut off the CPU clock but keep peripherals alive, drawing around 48 µA/MHz, while Deep Sleep on many 32-bit cores drops to 0.9 µA total. LCD panels rely on LED backlights, which can consume up to 10× more power than the liquid-crystal drive itself. Lowering refresh rates has negligible effect because the backlight stays on continuously .
- MCU Power Modes
- Active/Run: Full clocks, all peripherals; ~114 µA/MHz
- Sleep (EM1): CPU clock off; 48 µA/MHz, retains RAM and peripherals
- Deep Sleep (EM2): High-speed clocks off; 0.9 µA, retains 32 kHz RTC
- LCD Backlight Power
- Static Draw: Backlight LED strings draw 5–20 mA per LED, totaling 50–200 mA at 3.3 V
- Panel Drive: Liquid-crystal matrix itself consumes < 20 mA across data lines
- Refresh Rate Impact
- Changing from 60 Hz to 120 Hz adds < 5 % extra power in LED backlight drivers
What coding and hardware techniques save the most energy?
Batching SPI or parallel writes into blocks of 32 pixels reduces MCU wake-ups by 40 %, slashing active time. On hardware, a low-dropout regulator with 90 % efficiency outperforms linear LDOs by cutting overhead losses from 100 mW to 10 mW under typical loads.
Supplementary Detail
- Efficient Coding: Use DMA to transfer display data autonomously; reduces CPU cycles by 30 %
- Hardware Optimization: Employ step-down DC/DC modules at 95 % efficiency for backlight supply, saving up to 50 mW in small panels
Note: The majority of power savings comes from tuning both MCU modes and backlight control rather than manipulating refresh frequencies.
Which online selection tools can streamline MCU selection?
Manufacturers provide Vendor Selectors—like ST’s STM32 Product Selector and Microchip’s Parametric Search—to filter parts by pins, memory, peripherals, and cost. Distributors and independent sites offer Community Forums and Parametric Search listings that compare multiple brands in one table.
In practice, design teams often cross-validate ST’s graphical selector with Renesas’s product selector to ensure they haven’t missed low-cost alternatives. Many engineers then consult community threads on Reddit to catch quirks—like peripheral conflicts or package availability—before finalizing their pick.
Technical Details
- Vendor Selectors
- ST’s STM32 Product Selector lets you pick core type, clock, memory, package, temp grade, and peripherals in a single UI.
- Microchip’s Parametric Search filters 8-, 16-, and 32-bit MCUs by pin count, UART/SPI/I²C count, and Flash/RAM size.
- Distributor Databases
- Digi-Key and Mouser let you sort by stock, price breaks, and lead time across all major MCU brands .
- Community Resources
- Reddit’s r/stm32 and Electro-Tech threads identify hidden errata and common setup pitfalls.
Are there API or mobile apps for MCU selection?
Yes. Holtek’s API & Mobile Apps let you query part specs and stock levels via REST calls or an iOS/Android interface. Several vendors also expose XML/JSON APIs for parametric search, enabling integration into custom BOM-generation scripts.
- Holtek MCU Selector App: Offers offline access to full MCU catalogs, filtering by features and package, with direct links to datasheets and distributor stock.
- Microchip API: Allows authenticated calls to retrieve part lists based on feature queries, returning CSV or JSON for automated design-flow integration.
How Can You Enhance Graphics and GUI in Microcontroller LCD Projects?
To enhance graphics and GUI in LCD projects, use libraries or dedicated controllers to simplify rendering and improve performance. Libraries streamline complex display tasks, while dedicated controllers offload processing from the microcontroller.
- Graphics Libraries: These handle animations or fonts on micro LCD displays, reducing coding effort. They optimize rendering for color displays.
- Dedicated Controllers: These chips manage graphics processing, freeing the MCU for other tasks. They suit high-resolution or video applications.
Technical Details for Graphics Enhancements
- Library Features: Libraries support 8-bit or 32-bit MCUs, offering functions for text, icons, or GUIs. For example, a 320×240 display might need 50 KB of library code.
- Controller Benefits: A graphics controller can handle frame buffers, cutting RAM use on the microcontroller. This boosts speed for animations.
What Are the Key Considerations for Touchscreen Integration in LCD Projects?
Touchscreen integration requires extra pins or interfaces like I²C to connect touch controllers to your microcontroller. Plan for interface needs early to ensure the MCU supports touch inputs without overloading GPIO.
- Interface Needs: Capacitive touch often uses I²C or SPI, needing 2–4 pins. Check microcontroller datasheets for communication module support.
Touchscreen Setup Details
- Pin Allocation: A touch controller might require 4 pins for data and control signals. Ensure the MCU has enough GPIO for both LCD and touch.
- Driver Complexity: Touch interfaces need lightweight software drivers, adding 10–20 KB to flash memory for embedded systems.
How Does an RTOS Support Complex LCD Applications?
A Real-Time Operating System (RTOS) manages tasks in complex LCD applications, ensuring smooth rendering and touch response. It schedules processes like display updates or sensor inputs, preventing delays in mcu in embedded systems.
- RTOS Use: An RTOS prioritizes real-time tasks, such as refresh rates for video displays. It suits 32-bit MCUs with multitasking needs.
RTOS Implementation Notes
- Task Management: An RTOS can handle GUI updates and touch events in parallel, needing 20–50 KB of RAM.
- MCU Compatibility: Confirm the microcontroller has enough memory and speed for RTOS overhead, typically 100 MHz or higher.
What Tools and Standards Ensure Reliable LCD Prototyping and Compliance?
Development boards and EMC/EMI compliance ensure LCD prototypes are functional and reliable for industrial use. Boards speed up testing, while compliance prevents interference in embedded microcontrollers.
- Development Boards: These allow quick setup for microcontroller boards, testing SPI or touch interfaces before production.
- EMC/EMI Compliance: Standards like FCC or CE ensure industrial microcontrollers avoid signal interference, critical for display reliability.
Prototyping and Compliance Details
- Board Features: Development boards often include pre-wired LCDs, cutting setup time by 50% for prototype testing.
- EMI Testing: Use shielding or filters to meet EMC standards, ensuring microcontroller signals don’t disrupt LCD performance.
- Compliance Costs: Budget 2000 for EMI certification, depending on application complexity and market requirements.
FAQ
What if my LCD project needs both touch and sensors?
You can assign I²C or SPI for touch controllers and reserve GPIOs for sensors, ensuring separate interrupt lines for clean data handling.
Can I use an 8-bit MCU for a small color TFT?
Yes, but keep refresh rates low and use SPI with DMA to avoid CPU overload and maintain smooth updates.
How do I verify GPIO voltage compatibility?
Check your MCU’s datasheet for drive strength and domain voltage; add level shifters if your LCD uses a different voltage.
Is external memory always required for GUI projects?
Not aways, use on-chip RAM for simple screens. For high-resolution or multiple buffers, add QSPI flash or PSRAM.
Which power mode is best when the display is static?
Use deep sleep with SPI wake-up or batch-mode updates; this keeps backlight on but minimizes MCU active current.
